Product Details:
|
| Nominal Voltage: | 12V | Capacity: | 180Ah |
|---|---|---|---|
| Battery Cell Composition: | Lead Calcium | Separator: | AGM |
| Case Material: | ABS | Item Weight: | 56kg±5% |
| Dimensions: | 560 X 125 X 317 Mm | Applications: | Backup Power,Solar System,Wind System; Telecommunication Equipment |
| OEM/ODM: | Acceptable | Export: | Yes |
| Warranty: | 2 Years | Sealed Type: | Seald |
| Color: | Customized Color | Terminal: | Copper Terminal |
| High Light: | Lead Calcium Front Terminal Battery,12V 180Ah Front Terminal Battery,Lead Calcium 12V 180Ah Battery |
||

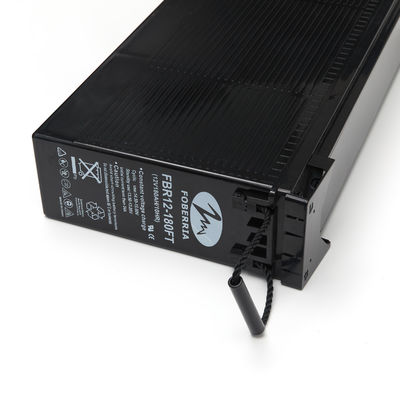

Good Cost Performance 12V 180Ah Front Terminal Battery
> Our Advantage
-FOBERRIA Battery factory since 1979
-Over 100,000m² manufacturing area ,capability of 3,000,000 pcs/year, value of 80,000,000USD.
-Certificate of ISO9001:2000,ISO14001,ISO/TS16949, SGS,CE,ROHS, SONCAP, Green Production Enterprise
> Specification
|
Battery Model No. |
FBR12V180FT |
|
|
Nominal Voltage |
12V |
|
|
Capacity(25ºC) |
20HR(5.25V) |
180Ah |
|
10HR(5.25V) |
158Ah |
|
|
1HR(4.80V) |
108Ah |
|
|
Dimension |
Length |
560±2mm |
|
Width |
125±2mm |
|
|
Height |
316±2mm |
|
|
Total height |
316±2mm |
|
|
Approx. Weight |
55.5kg±4% |
|
|
Terminal type |
F13 |
|
|
Internal resistance |
Approx 4.2mΩ |
|
|
(Fully charged,25ºC) |
||
|
Capacity affected by |
40ºC |
102% |
|
temperature(20HR) |
25ºC |
100% |
|
|
0ºC |
85% |
|
|
-15ºC |
65% |
|
Self-discharge |
3month |
Remaining Capacity:91% |
|
(25ºC) |
6month |
Remaining Capacity:82% |
|
|
12month |
Remaining Capacity:65% |
|
Nominal operating temperature |
25ºC±3ºC(77ºF±5ºF) |
|
|
Operating |
Discharge |
-15ºC-50ºC(5ºF-122ºF) |
|
temperature range |
Charge |
-10ºC-50ºC(14ºF-122ºF) |
|
|
Storage |
-20ºC-50ºC(-4ºF-122ºF) |
|
Float charging voltage |
13.5 to 13.8V |
|
|
(25ºC) |
Temperature compensation:-18mV/ºC |
|
|
Cyclic charging voltage |
14.5 to 15V |
|
|
(25ºC) |
Temperature compensation:-30mV/ºC |
|
|
Max charging current |
54A |
|
|
Max discharging current |
1400A(5sec.) |
|
|
Designed floating life(20ºC) |
12years |
|
> Structure and composition
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 381 | 293 | 175 | 108 | 65.8 | 46.8 | 37.8 | 32.3 | 22.0 | 18.3 | 9.71 |
| 9.9V | 369 | 286 | 172 | 106 | 65.4 | 46.5 | 37.6 | 32.1 | 22.1 | 18.3 | 9.69 |
| 10.2V | 354 | 276 | 167 | 104 | 64.8 | 46.2 | 37.3 | 31.9 | 21.9 | 18.2 | 9.66 |
| 10.5V | 339 | 266 | 163 | 101 | 63.8 | 45.9 | 37.1 | 31.7 | 21.8 | 18.1 | 9.61 |
| 10.8V | 320 | 252 | 157 | 98.3 | 62.2 | 44.5 | 36.0 | 30.7 | 21.1 | 18.0 | 9.54 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 4111 | 3221 | 1969 | 1230 | 762 | 551 | 445 | 382 | 264 | 219 | 117 |
| 9.90V | 3987 | 3143 | 1929 | 1212 | 757 | 547 | 442 | 380 | 262 | 218 | 116 |
| 10.2V | 3823 | 3027 | 1870 | 1181 | 750 | 544 | 439 | 377 | 261 | 218 | 116 |
| 10.5V | 3659 | 2924 | 1825 | 1156 | 739 | 540 | 436 | 374 | 259 | 216 | 115 |
| 10.8V | 3453 | 2770 | 1758 | 1121 | 720 | 524 | 423 | 363 | 251 | 215 | 114 |
>Application
1. Front terminal series VRLA battery have been designed to be used in UPS system and telecom equipment.
2. Solar and wind energy storage system
3. Signal system , emergency lighting system , security system
4. Power source for portable devices or tools.
> Production Line
>Our Services
We accept OEM .
We accpet sample order for quality testing before production order.
After-Sale Service: Consultacncy and Technical Support
>Delivery & Payment Terms
| Payment Terms | T/T | EXW | 30% in advance for deposit payment, the balance payments will be paid before shipment. | |
| FOB | ||||
| CFR/C&F | 30% in advance for deposit payment, the balance will be paid against copy of B/L | |||
| CIF | ||||
| L/C | For the amount of one shipment above 50,000 usd, L/C at sight is acceptable. | |||
| Delivery Time | 30 days after receiving the payment or the deposit payment | |||
