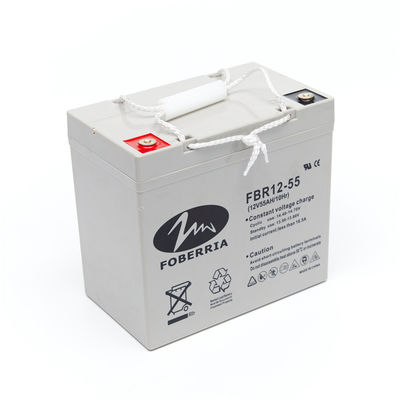

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS
Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS

Large Image :  Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS

Product Details:
Place of Origin: CHINA
Brand Name: FOBERRIA
Certification: CE / ISO9001
Model Number: FBR12-55
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Cartons with pallet
Delivery Time: 25-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60,000 per month

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS

Description
Name: UPS Battery Model: FBR12-55
Voltage: 12V Capacity: 55AH
Terminal: F14 Dimension: 230*140*215mm
Weight: 16.5kg±5% Color: Grey
Feature: Low Self Discharge Application: UPS,Solar System
Long Life: 10 Years Sealed Type: Sealed
Usage: UPS,Solar System Batttery Type: Deep Cycle Rechargeable Battery
High Light:

Lead Acid Rechargeable Battery 12v 55ah

,

12v Sealed Lead Acid Rechargeable Battery

,

55ah Sealed Lead Acid Rechargeable Battery

lead acid rechargeable battery 12v 55ah Sealed AGM battery for Scooter/UPS



> Product Features

1. Good discharge performance



2. Low self-discharge rate:≤3%/month



3. High sealed reaction efficiency≥99%



4. Wide operation temperature:﹣20℃~60℃



5. Tight assembly,low internal resistance



6. Wiring terminals: 2 or more types of wiring terminals, multiple choices



7. Diaphragm: improved AGM diaphragm makes the resistance lower, high assembly pressure increases the service life of deep circulation



8. Shell: high strength ABS (ul94-hb); Ul94-vo optional



9. Terminal sealing: (mechanical + epoxy resin glue) double sealing



>Application

Products are widely used in hybrid wind off-grid power station, household energy storage power generation system, monitoring system,equipment, street lamp, outdoors, electric cars, electric sightseeing cars, street cleaner, sanitation trucks, the uninterrupted power source(UPS), communication base station, and emergency EPS system, etc.



Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS 0

> Specification
Battery Model No.   FBR12-55
Nominal Voltage   12V
Capacity 20HR(10.8V) 55Ah
(25ºC) 10HR(10.5V) 48.4Ah
  1HR(9.6V) 34Ah
Dimension Length 230±2mm
Width 140±2mm
Height 211±2mm
Total height 215±2mm
Approx. Weight 16.5kg±5%
Terminal type F14
Internal resistance(Fully charged,25ºC) Approx 7
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
  Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)
13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)
14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 16.5A
Max discharging current 550A(5sec.)
Designed floating life(20ºC) 10years


>Structure and composition

Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS 1
>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 262 202 121 74.2 43.8 31.2 25.2 21.5 14.8 12.2 6.47
9.9V 254 197 118 73 43.6 31 25.1 21.4 14.7 12.2 6.46
10.2V 243 190 115 71.2 43.2 30.8 24.9 21.3 14.6 12.2 6.44
10.5V 233 183 112 69.7 42.6 30.6 24.7 21.1 14.5 12.1 6.4
10.8V 220 173 108 67.6 41.5 29.7 24 20.5 14.1 12 6.36





>Constant Power Discharge Characteristics(Watt,25ºC)



F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 2825 2214 1353 845 508 367 297 255 176 146 77.7
9.90V 2741 2160 1326 833 505 365 295 253 175 146 77.5
10.2V 2628 2081 1285 812 500 362 293 251 174 145 77.3
10.5V 2514 2010 1254 795 493 360 291 250 172 144 76.9
10.8V 2373 1904 1208 770 480 349 282 242 167 143 76.3


>Discharge diagram

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS 2
Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS 3


>Production process
Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS 4

>Workshop scene
Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS 5
>DAILY MAINTENANCE AND OPERATION
  • Discharge
  1. Do not let the terminal voltage drop below the terminal voltage
  2. Do not leave the battery in a discharged condition. Recharge it immediately. Also when the battery has been over discharged by mistake, recharge it immediately.
  3. The maximum permissible discharge current 6C amps discharge for 5 seconds or less, do not exceed this value, otherwise it may damage the battery.
  • Charge



  1. Float charge
    The floating charge voltage should remain constant

    The effects of too high or too low a floating charge voltage is as follows:
    Too high for extended period (overcharge): it may shorten battery life
    Too low for extended period (undercharge): it may not meet load or cause variances in battery voltage that will decrease the capacity of battery pack and shorten their life.

  2. Recovery charge

  3. When resuming charging, the initial current should be limited to 0.1C-0.3CA

  4. Temperature compensation
    When the temperature deviates from 25℃, please modify the voltage as 3mv/cell fo every 1C deviation.

  5. The equalizing charge
    The equalizing charge voltage is 2.30 - 2.35V/cell.

  6. Cautions during charge
    (a)If the charge current exceeds 0.05CA at the final stage of charge, the storage batter may be permanently damaged in appearance and life. Pay special.attention to charging voltage.
    (b)The battery charger should be the one that can provide automatic constant voltage with drooping characteristics, if other types will be used, please contact us before applied.

  • STORAGE

1. When you wish to store the battery, battery should be stored without charger and load at dry location with low temperature.
2. If batteries are stored for a long period, give a supplementary charge before use.
