Product Details:
|
Name: | Sealed Lead Acid Batteries | Model: | FBR12V 150AH |
---|---|---|---|
Volts: | 12V | Capacity: | 150ah |
Case Material: | ABS | Application: | UPS,Electric Power Storage |
Terminal Type: | F13 | Maintenance Type: | Free |
Sealed Type: | Sealed | Usage: | UPS,Solar Energy System, Wind System & Etc |
Color: | Grey Or Black | Battery Type: | Sealed Rechargeable Battery |
Design Life: | 10 Years(floating Charge) | Weight: | 43kg±4% |
Size: | 485*172*240mm | OEM: | Avaliable |
Oem Order: | Acceptable | ||
High Light: | F13 Deep Cycle Sealed Battery,12V 150ah Deep Cycle Sealed Battery,Rechargeable 12v 150ah Deep Cycle Battery |

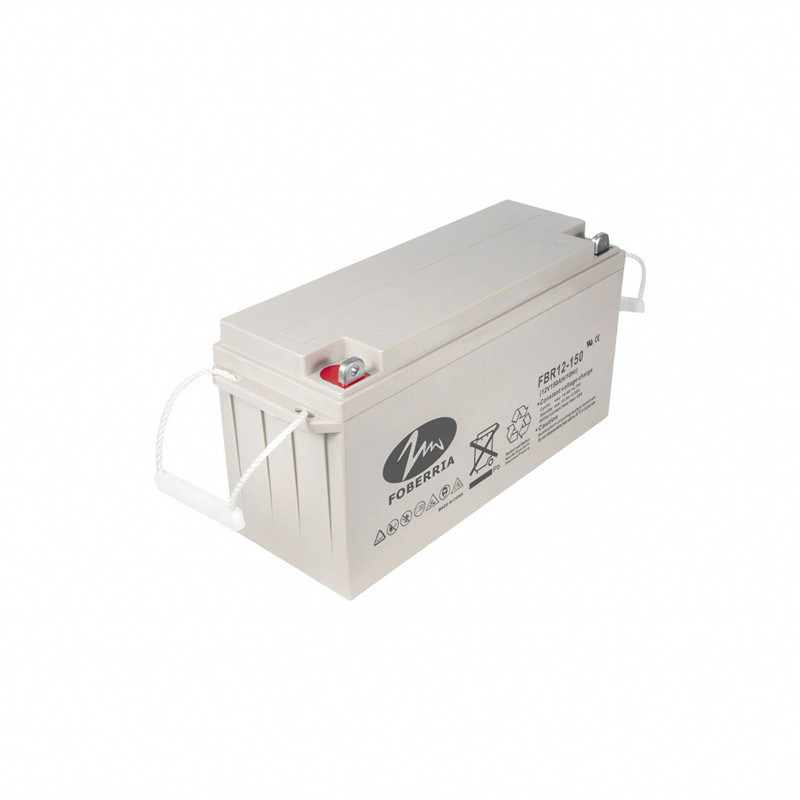

Deep cycle sealed battery 12Volt 150ah AGM Rechargeable lead acid battery
>Overview
FBR DEEP CYCLE SEALED LEAD ACID BATTERIES provide high performance and brilliant reliability in long period cycling use. Special lead
calcium alloy plate and high purify additive formulation of the deep cycle battery series provides constant power for longer length of time without
shortening the life of the battery.The deep cycle AGM battery series offer an exceptionally long cycle life compared to standard AGM, Mainly
applied for electric systems, security systems, medical equipment, shipping systems, telecommunications equipment, various testing machines,
radio transceiver, the banking uninterruptible power supply system, railway locomotives, railway communications, emergency lighting systems,
small lamps, large UPS and computer backup power, fire extinguishing systems, electronic equipment ,solar power system (off-grid solar power
system, solar street light system, solar garden light system) and wind power system, etc.
Battery Model No. | FBR12V150AH | |
Nominal Voltage | 12V | |
Capacity | 20HR(5.25V) | 150Ah |
(25ºC) | 10HR(5.25V) | 132Ah |
1HR(4.80V) | 92Ah | |
Dimension | Length | 485±2mm |
Width | 172±2mm | |
Height | 240±2mm | |
Total height | 240±2mm | |
Approx. Weight | 43kg±4% | |
Terminal type | F13 | |
Internal resistance | Approx 3.5mΩ | |
(Fully charged,25ºC) | ||
Capacity affected by | 40ºC | 102% |
temperature(20HR) | 25ºC | 100% |
0ºC | 85% | |
-15ºC | 65% | |
Self-discharge | 3month | Remaining Capacity:91% |
(25ºC) | 6month | Remaining Capacity:82% |
12month | Remaining Capacity:65% | |
Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
Storage | -20ºC-50ºC(-4ºF-122ºF) | |
Float charging voltage | 13.5 to 13.8V | |
(25ºC) | Temperature compensation:-18mV/ºC | |
Cyclic charging voltage | 14.5 to 15V | |
(25ºC) | Temperature compensation:-30mV/ºC | |
Max charging current | 45A | |
Max discharging current | 1200A(5sec.) | |
Designed floating life(20ºC) | 10years |
> Main Features
1. Maintenance free sealed lead acid battery
As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside. so refilling is not needed and is
leak proof.
2. Low self discharge
The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .temperature compared with 20-30%
for other common battery systems.
3. Longer service life
Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.
4. High discharge rate
Since the internal resistance is low .the battery can provide high rate of discharge.
Component | Pos. plate | Neg. plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);
2. Wind Power System;
3. UPS and computer backup power;
4. telecommunication system;
5. Power station System;
6. Emergency lighting system;
7. Alarm system for fire protection, security.
F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
9.6V | 142 | 109 | 65.3 | 40.2 | 23.8 | 16.9 | 13.7 | 11.7 | 8.02 | 6.62 | 3.51 |
9.9V | 137 | 107 | 64 | 39.6 | 23.6 | 16.8 | 13.6 | 11.6 | 7.98 | 6.6 | 3.5 |
10.2V | 132 | 103 | 62.1 | 38.6 | 23.4 | 16.7 | 13.5 | 11.5 | 7.92 | 6.58 | 3.49 |
10.5V | 126 | 99.2 | 60.6 | 37.8 | 23 | 16.6 | 13.4 | 11.4 | 7.87 | 6.55 | 3.47 |
10.8V | 119 | 93.9 | 58.3 | 36.6 | 22.5 | 16.1 | 13 | 11.1 | 7.63 | 6.5 | 3.45 |
>Constant Power Discharge Characteristics(Watt,25ºC)
F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
9.60V | 1530 | 1199 | 733 | 458 | 275 | 199 | 161 | 138 | 95.3 | 79 | 42.1 |
9.90V | 1484 | 1170 | 718 | 451 | 273 | 198 | 160 | 137 | 94.7 | 78.9 | 42 |
10.2V | 1423 | 1127 | 696 | 440 | 271 | 196 | 159 | 136 | 94.1 | 78.6 | 41.9 |
10.5V | 1362 | 1089 | 679 | 430 | 267 | 195 | 157 | 135 | 93.4 | 78.2 | 41.6 |
10.8V | 1286 | 1031 | 655 | 417 | 260 | 189 | 153 | 131 | 90.6 | 77.6 | 41.3 |
