Product Details:
|
| Place Of Origin: | China | Product Name: | GEL Battery |
|---|---|---|---|
| Model: | FBR12-38 | Nominal Voltage: | 12V |
| Capacity: | 38AH | Terminal: | F2/F1 |
| Dimension: | 256*134*194mm | Weight: | 27kg |
| Battery Cell: | Sealed Lead Acid | Guarantee: | 3Years |
| Reusability: | Rechargeable | Apply: | Alarm And Safety System, Instrument System. |
| High Light: | 12V38Ah Rechargeable Gel Battery,EPS 12v 33ah gel battery,UPS 12v 24ah Gel Battery |
||

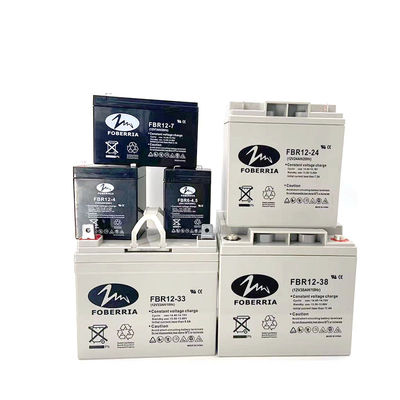

UPS EPS Lead Acid Rechargeable Gel Battery 12V24Ah 12V33Ah 12V38Ah
>Main Features
What is GEL battery?
Besides the characteristics of VRL A, GEL battery has:
1. Thixotropic gel electrolyte was used.
2. It's in a solid state between the plates and separators, not like traditiona AGM electrolyte "starve" design,
GEL battery volume than AGM type. Different type of separator, such as PE, PVC etc .
DG (Deep Cycle GEL) series is designed for frequent cyclic charge and discharge applications under extreme enviroments.
By using strong grids, high purity lead and patented Gel electrolyte, DG series offers excellent recovery after deep discharge
under frequent cyclic discharge, and can deliver 400 cycles at 100% DOD. Suitable for solar, CATV, marine , RV and deep discharge
UPS etc..
| Battery Model No. | FBR12V38Ah | |
| Nominal Voltage | 12V | |
| Capacity (25ºC) |
20HR(5.25V) | 38Ah |
| 10HR(5.25V) | 34Ah | |
| 1HR(4.80V) | 29Ah | |
| Dimension | Length | 256±2mm |
| Width | 134±2mm | |
| Height | 194±2mm | |
| Total height | 214±2mm | |
| Approx. Weight | 19kg±4% | |
| Terminal type | F2/F1 | |
| Internal resistance (Fully charged,25ºC) |
Approx 5mΩ | |
| Capacity affected by temperature(20HR) |
40ºC | 102% |
| 25ºC | 100% | |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge (25ºC) |
3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% | |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating temperature range |
Discharge | -15ºC-50ºC(5ºF-122ºF) |
| Charge | -10ºC-50ºC(14ºF-122ºF) | |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage (25ºC) |
13.5 to 13.8V Temperature compensation:-18mV/ºC |
|
| Cyclic charging voltage (25ºC) |
14.5 to 15V Temperature compensation:-30mV/ºC |
|
| Max charging current | 27A | |
| Max discharging current | 800A(5sec.) | |
| Designed floating life(20ºC) | 10years | |
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
It is widely used in communication equipment, UPS/EPS power supply, medical equipment, emergency lamp,
aviation signal, railway signal,alarm and safety system, instrument and instrument system.
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 436 | 336 | 201 | 124 | 73.1 | 52 | 42 | 35.9 | 24.7 | 20.4 | 10.8 |
| 9.9V | 423 | 328 | 197 | 122 | 72.6 | 51.7 | 41.8 | 35.7 | 24.5 | 20.3 | 10.8 |
| 10.2V | 405 | 316 | 191 | 119 | 72 | 51.4 | 41.5 | 35.4 | 24.4 | 20.3 | 10.7 |
| 10.5V | 388 | 305 | 186 | 116 | 70.9 | 51 | 41.2 | 35.2 | 24.2 | 20.1 | 10.7 |
| 10.8V | 366 | 289 | 179 | 113 | 69.1 | 49.5 | 41 | 34.1 | 23.5 | 20 | 10.6 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 4709 | 3689 | 2255 | 1409 | 846 | 612 | 494 | 424 | 293 | 243 | 129 |
| 9.90V | 4568 | 3601 | 2210 | 1388 | 841 | 608 | 491 | 422 | 292 | 243 | 129 |
| 10.2V | 4379 | 2468 | 2142 | 1353 | 834 | 604 | 488 | 419 | 290 | 242 | 129 |
| 10.5V | 4191 | 3350 | 2091 | 1324 | 821 | 600 | 485 | 416 | 287 | 240 | 128 |
| 10.8V | 3955 | 3173 | 2014 | 1284 | 800 | 582 | 470 | 404 | 279 | 239 | 127 |
