Product Details:
|
| Name: | Sealed Lead Acid Batteries | Model: | FBR12-65 |
|---|---|---|---|
| Volts: | 12V | Capacity: | 65AH |
| Case Material: | ABS | Application: | UPS,Electric Power Storage |
| High Light: | 12V65ah Gel Lead Acid Batteries,650A Gel Lead Acid Batteries,650A Smf Lead Acid Battery |
||

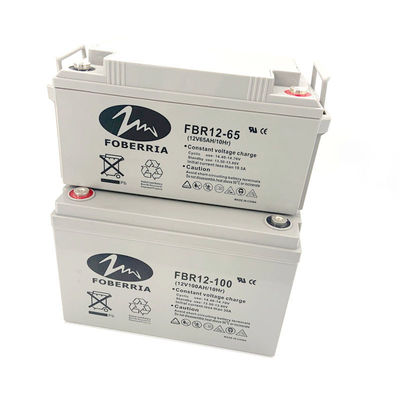

Rechargeable Smf Lead Acid Battery 12V 65ah Gel Lead Acid Batteries For Solar System
> Main Features
1. Maintenance free sealed lead acid battery
As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside. so refilling is not needed and is
leak proof.
2. Low self discharge
The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .temperature compared with 20-30%
for other common battery systems.
3. Longer service life
Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.
4. High discharge rate
Since the internal resistance is low .the battery can provide high rate of discharge.
| Battery Model No. | FBR12V65Ah | |
| Nominal Voltage | 12V | |
| Capacity | 20HR(5.25V) | 65Ah |
| (25ºC) | 10HR(5.25V) | 57Ah |
| 1HR(4.80V) | 40Ah | |
| Dimension | Length | 350±2mm |
| Width | 167±2mm | |
| Height | 175±2mm | |
| Total height | 175±2mm | |
| Approx. Weight | 20kg±4% | |
| Terminal type | F14 | |
| Internal resistance | Approx 6mΩ | |
| (Fully charged,25ºC) | ||
| Capacity affected by | 40ºC | 102% |
| temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge | 3month | Remaining Capacity:91% |
| (25ºC) | 6month | Remaining Capacity:82% |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage | 13.5 to 13.8V | |
| (25ºC) | Temperature compensation:-18mV/ºC | |
| Cyclic charging voltage | 14.5 to 15V | |
| (25ºC) | Temperature compensation:-30mV/ºC | |
| Max charging current | 19.5A | |
| Max discharging current | 650A(5sec.) | |
| Designed floating life(20ºC) | 10years | |
| Component | Pos. plate | Neg. plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);
2. Wind Power System;
3. UPS and computer backup power;
4. Telecommunication system;
5. Power station System;
6. Emergency lighting system;
7. Alarm system for fire protection, security.
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 142 | 109 | 65.3 | 40.2 | 23.8 | 16.9 | 13.7 | 11.7 | 8.02 | 6.62 | 3.51 |
| 9.9V | 137 | 107 | 64 | 39.6 | 23.6 | 16.8 | 13.6 | 11.6 | 7.98 | 6.6 | 3.5 |
| 10.2V | 132 | 103 | 62.1 | 38.6 | 23.4 | 16.7 | 13.5 | 11.5 | 7.92 | 6.58 | 3.49 |
| 10.5V | 126 | 99.2 | 60.6 | 37.8 | 23 | 16.6 | 13.4 | 11.4 | 7.87 | 6.55 | 3.47 |
| 10.8V | 119 | 93.9 | 58.3 | 36.6 | 22.5 | 16.1 | 13 | 11.1 | 7.63 | 6.5 | 3.45 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 1530 | 1199 | 733 | 458 | 275 | 199 | 161 | 138 | 95.3 | 79 | 42.1 |
| 9.90V | 1484 | 1170 | 718 | 451 | 273 | 198 | 160 | 137 | 94.7 | 78.9 | 42 |
| 10.2V | 1423 | 1127 | 696 | 440 | 271 | 196 | 159 | 136 | 94.1 | 78.6 | 41.9 |
| 10.5V | 1362 | 1089 | 679 | 430 | 267 | 195 | 157 | 135 | 93.4 | 78.2 | 41.6 |
| 10.8V | 1286 | 1031 | 655 | 417 | 260 | 189 | 153 | 131 | 90.6 | 77.6 | 41.3 |
