Product Details:
|
Name: | Lifepo4 Battery | Type: | 32650/32700 |
---|---|---|---|
Accept: | Customized | Range: | Lithium Battery |
Application: | Flashlight,electric Bike,e-scooter,UPS, Communication System,Electric Power Storage | Color: | Blue(customized) |
Battery Material: | Rechargeable Lithium Ion 18650 Battery Pack | Nominal Voltage: | 3.2V |
Nominal Capacity: | 3000mAh | ||
Highlight: | Deep Cycle 32700 Lifepo4 Cells,3000mAh 32650 Lifepo4 Cells,Deep Cycle 32650 Lifepo4 Cells |

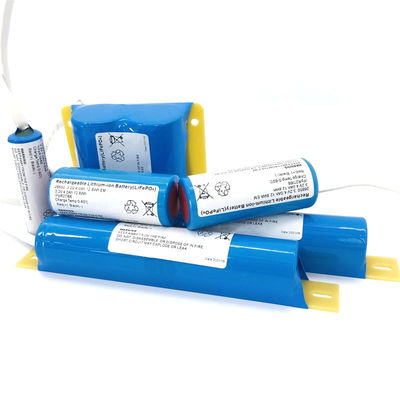

Deep Cycle Rechargeable 3.2V 32650 32700 LiFePO4 Battery Cell
>Main Features
Advantages
1. Over 10 years' experience
2. Completely products including Li-pol, LiFePO4, Li-ion battery meet your various demand.
3. Automatic production brings you high performance products.
4. Complete certificates including: UN38.3, CB, IEC62133, UL, KC, BIS…
5. Fast response less than 12 hours
6. Global Insurance
WARN
*Fire, explosion and burn hazard.
*Short circuit, crush ,disassemble, heat above 100℃ incinerate.
*Do not use the battery beyond the permitted temperature range.
(1) The battery pack is equipped with a BMS management system, which is rich in functions and can realize convenient battery
management by cooperating with the upper computer software;
(2) The charging and discharging parameters need not be adjusted to match the original switching power supply system in the machine.
(3) Compatible with multiple communication modes of R232, RS485 and SNMP;
(4) A variety of installation and use modes are designed, which can meet the requirements of diversified application scenarios,
such as standard cabinet, wall hanging, pole holding, landing, strap, lever box, etc;
>Main Applications
Video Devices: MP3/MP4/MP5,digital Camera, Portable DVD, Portable Television, Electronic Cigarettes, Electricity Sound Box, ect..
Portable Devices: GPS,PDA,E-Book, PMP, PSP, Laptop, Walkie-Talkies, Portable Medical Device, etc.
Illuminate Devices, Miner Lamp, Search Light, ect.
Others: Electric Toys, RC Models, Model Aircraft, Backup Power, Mobile Power Supply, Hand Electric Drill, ect.
>Model list
Battery Model | LiFePO4 3.2V 6000mAh 32650/32700 | |
Nominal Voltage | 3.2V | |
Cell Diameter | 32.2±0.3mm | |
Cell Height | 70.5±0.3mm | |
Cell Weight | 140±5g | |
End of charge Voltage | CC Mode 3.65V | |
End of charge Current | CV Mode 0.3A | |
End of discharge Voltage | CC Mode 2.0V | |
Max Current | 5C | |
Charging Temperature | 0~60°C | |
Discharging Temperature | -20~60°C | |
Storage Temperature | -20~45°C |
>Warning
To ensure proper use of the battery please read the manual carefully before using it.
Handling
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
Charge and discharge
1. Battery must be charged in appropriate charger only.
2. Never use a modified or damaged charger.
3. Do not leave battery in charger over 24 hours.
Storage
1. Store the battery in a cool, dry and well-ventilated area.
2. Disposal
Regulations vary for different countries. Dispose of in accordance with local regulations.
1. Charging
Charging current:Cannot surpass the biggest charging current which in this specification book stipulated.
Charging voltage:Does not have to surpass the highest amount which in this specification book stipulated to decide the voltage.
Charge temperature:The battery must carry on the charge in the ambient temperature scope which this specification
book stipulated
Uses the constant electric current and the constant voltage way charge, the prohibition reverse
charges. If the battery positive electrode and the cathode meet instead, can damage the battery.
2. Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest
discharging current, the oversized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
3. Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification
book stipulated.
4. Over-discharges
After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharges can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flash over characteristic certain excessively discharges the condition, for prevented excessively discharges the occurrence, the battery should maintain the certain electric quantity.
• Do not expose to, dispose of the battery in fire.
• Do not put the battery in a charger or equipment with wrong terminals connected.
• Avoid shorting the battery
• Avoid excessive physical shock or vibration.
• Do not disassemble or deform the battery.
• Do not immerse in water.
• Do not use the battery mixed with other different make, type, or model batteries.
• During transportation, 50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur. When you received the cell it most likely @ 50-75% SOC so we recommended to fully charge the battery for the first time of use.
• Keep out of the reach of children
