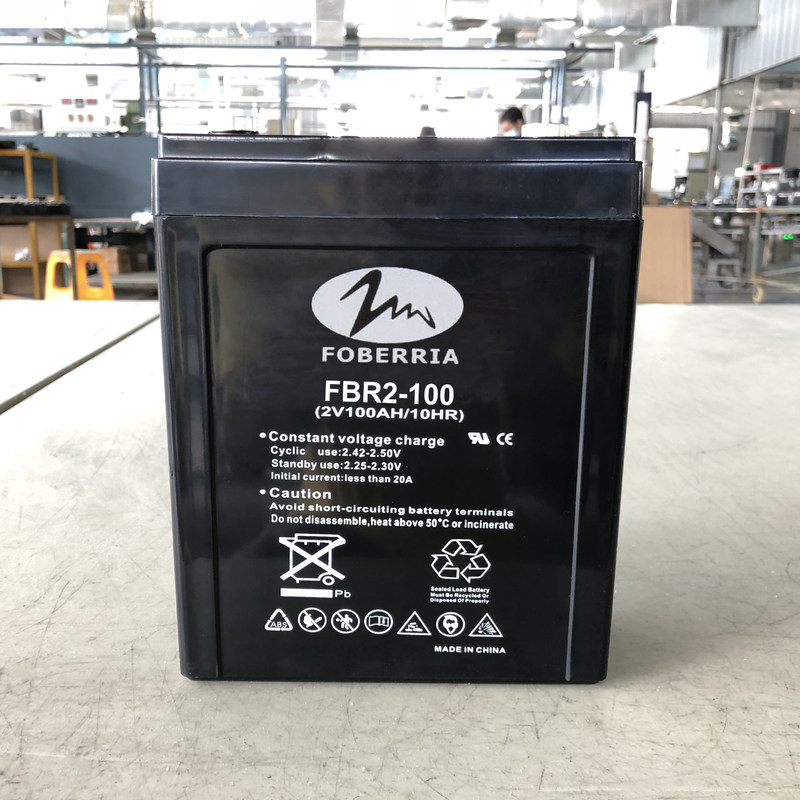

Rechargeable 2V 100ah AGM Lead Acid Battery For Solar And PV System

Factory 2v rechargeable battery 2V100ah AGM Lead Acid Battery for Solar and PV System

>Main Features

2V series is a general purpose battery with 20 years design life in float service. With heavy duty grids, thicker plates, special additives and updated AGM valve regulated technology, 2V series battery provides consistent performance and long service life. The new grid design effectively reduces the internal resistance, which provides higher specific energy density and excellent high rate discharge characteristics. It is suitable for communications back-up power and EPS/UPS applications .

AGM 2V Series VRLA Batteries from 100Ah to 3000Ah

Voltage class: 2V

Capacity range: 100Ah~3000Ah

Long design life

Low self-discharge rate

High specific energy density

Excellent high rate discharge performance

Application: telecom systems, UPS/EPS, control systems, electric power systems, etc.

*High capacity and long service life VRLA battery

*Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications

*Absorbent Glass Mat(AGM)technology for superior performance

*Special grid alloy and the use of high purity lead account for superior shelf-life characteristics,permitting storage for extended periods of time *Thick plate design and efficient gas recombination that yield a design life expectancy of up to 15years

*Proven valve regulated technology that guarantees safe operation without maintenance Rugged impact resistant ABS case and cover,available to UL94:Vo flame retardant.



>Specification



Battery Model No.		FBR2V100Ah
Nominal Voltage		2V
Capacity	10HR(1.80V)	100Ah
(25ºC)	3HR(1.75V)	75Ah
	1HR(1.75V)	56Ah
Dimension	Length	171±2mm
	Width	72±2mm
	Height	205±2mm
	Total height	208±2mm
Approx. Weight		5.6kg±4%
Terminal type		F13
Internal resistance (Fully charged,25ºC)		Approx 0.8mΩ
Capacity affected by	40ºC	102%
temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge	3month	Remaining Capacity:91%
(25ºC)	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage		2.25 to 2.30V
(25ºC)		Temperature compensation:-18mV/ºC
Cyclic charging voltage		2.42 to 2.50V
(25ºC)		Temperature compensation:-30mV/ºC
Max charging current		20A
Max discharging current		800A(5sec.)
Designed floating life(20ºC)		12years





>Structure and composition



Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper





>Application



It is widely used in communication equipment, UPS/EPS power supply, medical equipment, emergency lamp,



aviation signal, railway signal,alarm and safety system, instrument and instrument system.





>Constant Current Discharge Characteristics(A,25ºC)



F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
1.6V	211	163	97.5	59.9	36.5	26.0	21.0	18.0	12.3	10.2	5.4
1.65V	205	159	95.5	59.0	36.3	25.9	20.9	17.8	12.3	10.2	5.38
1.70V	197	153	92.6	57.5	36.0	25.7	20.7	17.7	12.2	10.1	5.37
1.75V	188	148	90.4	56.3	35.5	25.5	20.6	17.6	12.1	10.1	5.34
1.80V	178	140	87.1	54.6	34.6	24.7	20.0	17.1	11.7	10.0	5.30





>Constant Power Discharge Characteristics(Watt,25ºC)



F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
1.60V	381	298	182	114	70.5	51.0	41.2	35.4	24.4	20.3	10.8
1.65V	369	291	179	112	70.1	50.7	40.9	35.2	24.3	20.2	10.8
1.70V	354	280	173	109	69.5	50.3	40.7	34.9	24.1	20.2	10.7
1.75V	339	271	169	107	68.4	50.0	40.4	34.7	24.0	20.0	10.7
1.80V	320	256	163	104	66.7	48.5	39.2	33.6	23.2	19.9	10.6







>Production process



>Workshop scene



>FAQ



Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers.



      50-500pcs sample order is available. for sample checking is available.

Q3. Is it OK to print my logo on the product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6.What is your warranty time for VRLA battery ?

A6: It depends on battery capacity, depth of discharge, and battery usage.



Please kindly contact us for accurate information based on detailed requirements.
