OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle

OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle
OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle

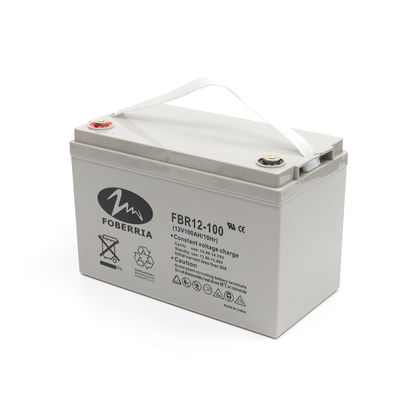

Large Image :  OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle

Product Details:
Place of Origin: CHINA
Brand Name: FOBERRIA
Certification: CE / ISO9001
Model Number: FBR12-100
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Cartons with pallet
Delivery Time: 25-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60,000 per month

OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle

Description
Name: Solar Sealed Lead Acid Battery Model: FBR12-100
Voltage: 12V Capacity: 100AH
Dimension: 330*171*214mm Weight: 29.5kg
Application: Solar System Terminal: F14
Color: Gray/black Electrolyte: Lead Acid
Rechargeable: Chargeable Feature: Low Self Discharge
Battery Type: Deep Cycle, Sealed Gel Origin: Made In China
High Light:

12v 100ah sealed solar gel batteries

,

oem sealed lead acid battery for solar

,

100ah agm gel deep cycle battery

OEM Energy Storage Battery Agm Gel Solar Battery 12v 100ah Deep Cycle for Sale



> Main Features of solar sealed lead acid battery

Foberria is a professional Manufacturer of lead-acid batteries. specializes in gel solar sealed lead acid battery,

The solar sealed lead acid battery are mainly used in communications equipment Bank, emergency systems, solar power systems,

wind power generation systems,household off-qrid power generation.

The company solar sealed lead acid battery through the ISO system, CE, IEC, MSDS and other quality certification, detection of TUV, SGS,

and has received three-party, once again proved that FOBERRIA brand is trustworthy.


Non-halogenated thermally sealed plastic casing

Design life 12+ years at 20°C (68°F)

EUROBAT design life definition: Very Long Life (12+ years)

> Specification of solar sealed lead acid battery

Battery Model No.   FBR12V100Ah
Nominal Voltage   12V
Capacity 20HR(5.25V) 100Ah
(25ºC) 10HR(5.25V) 35Ah
  1HR(4.80V) 24.5Ah
Dimension Length 330±2mm
Width 171±2mm
Height 214±2mm
Total height 220±2mm
Approx. Weight 29.5kg±4%
Terminal type F14
Internal resistance Approx 8.5
(Fully charged,25ºC)
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
  Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)
13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)
14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 12A
Max discharging current 400A(5sec.)
Designed floating life(20ºC) 10years


> Structure and composition

Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper


> Constant Current Discharge Characteristics(A,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 87.2 67.2 40.2 24.7 14.6 10.4 8.4 7.18 4.94 4.07 2.16
9.9V 84.6 65.6 39.4 24.3 14.5 10.3 8.36 7.14 4.91 4.06 2.15
10.2V 81.1 63.2 38.2 23.7 14.4 10.3 8.3 7.09 4.87 4.05 2.13
10.5V 77.6 61 37.3 23.2 14.2 10.2 8.24 7.04 4.84 4.03 2.13
10.8V 73.2 57.8 35.9 22.5 13.8 9.89 7.99 6.83 4.69 4 2.12





> Constant Power Discharge Characteristics(Watt,25ºC)



F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 942 738 451 282 169 122 98.8 84.9 58.6 48.6 25.9
9.90V 914 720 442 278 168 122 98.3 84.4 58.3 48.5 25.8
10.2V 876 694 428 271 167 121 97.6 83.8 57.9 48.4 25.8
10.5V 838 670 418 265 164 120 96.9 83.2 57.5 48.1 25.6
10.8V 791 635 403 257 160 116 94 80.7 55.8 47.8 25.4


> Discharge diagram

OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle 0
OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle 1

> Application


1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);



2. Wind Power System;



3. UPS and computer backup power;



4. Telecommunication system;



5. Power station System;



6. Railway System;



7. Emergency lighting system;



8. Alarm system for fire protection, security.

OEM Energy Storage Agm Gel Solar Battery 12v 100ah Deep Cycle 2
