Product Details:
|
| Name: | OPzS Battery | Model: | 2-300 |
|---|---|---|---|
| Voltage: | 2V | Size: | 145*206*410mm |
| Capacity: | 300ah | Terminal: | F12 |
| Weight: | 17.5kgs（without Electrolyte） | Color: | Black,Gray,Customized |
| Feature: | Low Self Discharge | Application: | Solar System,Telecom,Electric Utilities,Security Systems |
| Designed Floating Life: | 20+ Years | ||
| High Light: | 2V 300AH OPzS Tubular Battery,solar OPzS Tubular Battery,Electric Utilities opzs battery |
||

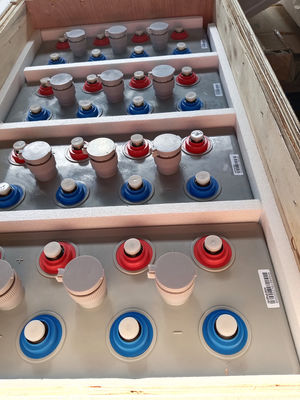

Long life solar battery flood Lead acid battery 2V300AH OPzS tubular for solar system
>Overview
Opzs series is a tubular rich liquid lead-acid battery with a design life of more than 20 years.Opzs series products have superior
performance and high reliability. It is suitable for DC power supply and backup power supply systems with high reliability and
service life requirements, such as power system, nuclear power plant, telecommunications center machine room, etc. it can
also be used in telecommunications, high-power UPS, solar energy, wind energy and other applications.
>Main Features
1. OPzS battery series is Valve Regulated Lead Acid battery adopting immobilised GEL and Tubular Plate technology,
offering high reliability and stable performance.
2. The OPzS battery series is designed and manufactured according to DIN standards, with die-casted positive grid and
patented active material formula, they exceed the DIN standard values.
3. They offer 20 years design life in float service at 25"C and are more suitable for cyclic use under extreme operating conditions.
4. Suitable for power supply in telecommunication, photovoltaic wind energy storage and UPS applications.
| Voltage | Voltage | Capacity | Internal resistance(mm) | Terminal Type |
Dry Weight (Kg) |
Wet Weight (Kg) |
|||
| (V) | (Ah) | Length | Width | Height | Total Height | ||||
| OPzS 200 | 2 | 200 | 103 | 206 | 355 | 410 | F12 | 13 | 17.5 |
| OPzS 250 | 2 | 250 | 124 | 206 | 355 | 410 | F12 | 15 | 20.5 |
| OPzS 300 | 2 | 300 | 145 | 206 | 355 | 410 | F12 | 17.5 | 24 |
| OPzS 350 | 2 | 350 | 124 | 206 | 471 | 526 | F12 | 21 | 28 |
| OPzS 420 | 2 | 420 | 145 | 206 | 471 | 526 | F12 | 23 | 32 |
| OPzS 490 | 2 | 490 | 166 | 206 | 471 | 526 | F12 | 26.5 | 37.5 |
| OPzS 600 | 2 | 600 | 145 | 206 | 646 | 701 | F12 | 35 | 47 |
| OPzS 800 | 2 | 800 | 191 | 210 | 646 | 701 | F12 | 48 | 64 |
| OPzS 1000 | 2 | 1000 | 233 | 210 | 646 | 701 | F12 | 58 | 78 |
| OPzS 1200 | 2 | 1200 | 275 | 210 | 646 | 701 | F12 | 68 | 92 |
| OPzS 1500 | 2 | 1500 | 275 | 210 | 796 | 851 | F12 | 80 | 111 |
| OPzS 2000 | 2 | 2000 | 397 | 212 | 772 | 827 | F12 | 110 | 152 |
| OPzS 2500 | 2 | 2500 | 487 | 212 | 772 | 827 | F12 | 132 | 185 |
| OPzS 3000 | 2 | 3000 | 576 | 212 | 772 | 827 | F12 | 159 | 222 |
1. Applications
2. Telecom
3. Security Systems
4. Medical Equipments
5. UPS systems
6. Railroad Utilities
7. Photovoltaic Systems
8. Renewable Energy System
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | PVC-SiO2 | Sulfuric acid | EPDR | Copper |
>Competitive Advantage
1. Sealed construction,safty and no leakage;
2. Maintenance-free,convenient for installation;
3. Broad operating temperature range;
4. High capability,high energy density;
5. Low self-discharge tate,more deep cycle times;
6. Long service life,excellent recharge and discharge time than other batteries.
>Cerificate
