Product Details:
|
| Name: | Lifepo4 Lithium Battery | Model: | 32650 12V 100ah |
|---|---|---|---|
| Voltage: | 12V | Capacity: | 100AH |
| Dimensions: | Max. L300mm*W600mm*H180mm(customizable) | Weight: | Approx 15Kg |
| Type: | LiFePO4 | Application: | Construction Engineering, Civil Bridge, Road Surface Inspection, Outdoor Geological Detection, Water Quality Air Monitoring, Mobile Information Communication, Surveying And Mapping Scan, Etc. Instrumentation Electronic Equipment |
| High Light: | Rechargeable 12V 100ah Lifepo4,Deep Cycle 12V 100ah Lifepo4,12V 100ah Lifepo4 Lithium Battery |
||

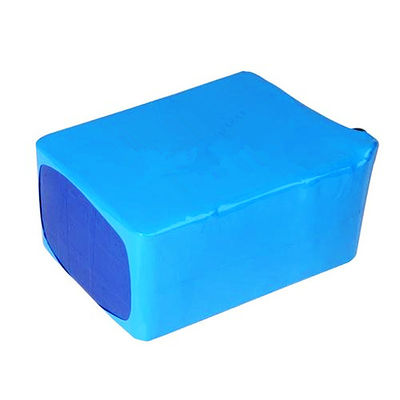

Customized 12V.8V Lifepo4 Lithium Battery Rechargeable lithium iron phosphate Pack
>Main Features
(1) The battery pack is equipped with a BMS management system, which is rich in functions and can realize convenient battery management by cooperating with the upper computer software;
(2) The charging and discharging parameters need not be adjusted to match the original switching power supply system in the machine room
(3) Compatible with multiple communication modes of R232, RS485 and SNMP;
(4) A variety of installation and use modes are designed, which can meet the requirements of diversified application scenarios, such as standard cabinet, wall hanging, pole holding, landing, strap, lever box, etc;
>Products parameters
| Battery pack model | 32650/12V/100Ah |
| Nominal Voltage | 12V |
| Nominal Capacity | 100Ah |
| Charging Temperature | -40~45°C |
| Discharge Temperature |
-40~55°C |
| Lithium Battery Protection | Short circuit protection, overcharge, overprofit protection, overcurrent protection, temperature protection, balance, etc |
| Dimensions | Max. L300mm*W600mm*H180mm(customizable) |
| Weight | Approx 15Kg |
| Application Area | Construction engineering, civil bridge, road surface inspection, outdoor geological detection, water quality air monitoring, mobile information communication, surveying and mapping scan, etc. Instrumentation electronic equipment |
>Warning
To ensure proper use of the battery please read the manual carefully before using it.
Handling
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
Charge and discharge
1. Battery must be charged in appropriate charger only.
2. Never use a modified or damaged charger.
3. Do not leave battery in charger over 24 hours.
Storage
1. Store the battery in a cool, dry and well-ventilated area.
2. Disposal
Regulations vary for different countries. Dispose of in accordance with local regulations.
| 30Ah |
