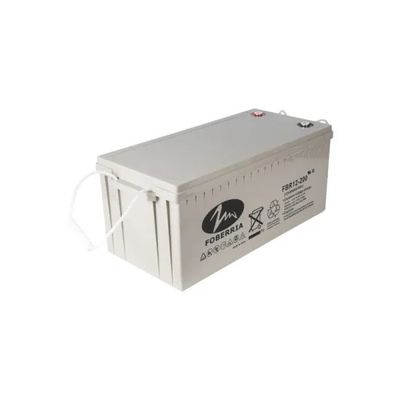

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS
Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS

Large Image :  Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS

Product Details:
Place of Origin: CHINA
Brand Name: FOBERRIA
Certification: CE / ISO9001
Model Number: FBR12-200
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Cartons with pallet
Delivery Time: 25-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80,000 per month

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS

Description
Product Name: Sealed Lead Acid Batteries Model: FBR12-200
Volts: 12V Nominal Capacity: 200AH
Weight: 59.5kg Dimension: 520*238*222mm
Terminal Type: F13 Case Material: ABS
Characteristic: Low Self Discharge Application: UPS Storage Backup
High Light:

F13 Terminal Battery 12v 200ah

,

VRLA Sealed Lead Acid Battery 12V 200Ah

,

Low Self Discharge Battery 12v 200ah

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS





> Main Features



1.Maintenance free rechargeable sealed lead acid battery



     As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside.



    so refilling is not needed and is leak proof.



2.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);

3.High quality AGM separator: extend cycle life and prevent micro short circuit.

4.PbCaSn alloy for plate grids: less gassing, less self-discharging.



5. Low self discharge



  The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room.



   temperature compared with 20-30% for other common battery systems.



6. Longer service life



  Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.



7. High discharge rate



    Since the internal resistance is low .the battery can provide high rate of discharge.



8. Wide operation temperature range



VRLA Rechargeable Sealed Lead Acid Battery capacity is rated at 25°C, and will operate from 15°C +50°C when it is fly charged Ambient temperature is 25°C.Service life will be more efficient under 15’C to 25”C .


9.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity.


> Specification

Battery Model No.   FBR12-200
Nominal Voltage   12V
Capacity 20HR(5.25V) 200Ah
(25ºC) 10HR(5.25V) 176Ah
  1HR(4.80V) 124Ah
Dimension Length 522±2mm
Width 238±2mm
Height 218±2mm
Total height 221±2mm
Approx. Weight 59.5kg±4%
Terminal type F13
Internal resistance(Fully charged,25ºC) Approx 3.5
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
  Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)
13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)
14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 60A
Max discharging current 1600A(5sec.)
Designed floating life(20ºC) 10years





> Structure and composition

Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS 0
> Application


1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);



2. Wind Power System;



3. UPS and computer backup power;



4. telecommunication system;



5. Power station System;



6. Railway System;



7. Emergency lighting system;



8. Automatic control system;



9. Alarm system for fire protection, security.

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS 1
Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS 2


>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time 5min 10min 15min 30min 60min 2h 3h 4h 5h 10h 20h
3.20V 17.2 10.9 8.51 4.79 2.95 1.61 1.12 0.92 0.78 0.43 0.228
3.30V 16.7 10.6 8.3 4.7 2.9 1.6 1.11 0.92 0.78 0.42 0.227
3.40V 16 10.13 7.99 4.55 2.83 1.59 1.1 0.91 0.77 0.42 0.226
3.50V 15.3 9.69 7.72 4.44 2.77 1.56 1.09 0.9 0.77 0.42 0.225
3.60V 14.4 9.15 7.31 4.28 2.69 1.52 1.06 0.88 0.75 0.41 0.221





>Constant Power Discharge Characteristics(Watt,25ºC)



F.V/Time 5min 10min 15min 30min 60min 2h 3h 4h 5h 10h 20h
3.20V 63.9 40.9 32.3 18.3 11.4 6.29 4.42 3.66 3.12 1.7 0.91
3.30V 62 39.7 31.5 17.9 11.2 6.25 4.39 3.64 3.11 1.7 0.91
3.40V 59.5 38.1 30.4 17.4 10.9 6.2 4.36 3.62 3.08 1.69 0.91
3.50V 56.9 36.4 29.3 17 10.7 6.1 4.33 3.59 3.06 1.68 0.9
3.60V 53.7 34.4 27.8 16.3 10.4 5.95 4.2 3.48 2.97 1.65 0.88


>Discharge diagram

Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS 3
Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS 4

>Workshop scene
Rechargeable sealed lead acid battery 12V 200Ah For Solar Storage UPS 5

Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers. 50-500pcs sample order is available.

for sample checking is available.

Q3. Is it OK to print my logo on the product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4. Why battery has different capacity at different hour rate?

A4: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example,

a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate,

the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.

Q5. Are you a battery manufacturer, and do you produce the plate by yourself ?

A5: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q6. How to proceed with an order?

A6. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.
