Product Details:
|
| Name: | OPzS Battery | Model: | OPzS |
|---|---|---|---|
| Voltage: | 2V | Capacity: | 200AH-3000AH |
| Terminal: | F12 | Color: | Gray |
| Application: | Telecom,Electric Utilities,Control Equipments, Security Systems | Feature: | Low Self Discharge |
| Place: | China | ||
| Highlight: | 350ah OPzS Tubular Battery,250ah OPzS Tubular Battery,600ah 420ah Long Lifetime Battery |
||

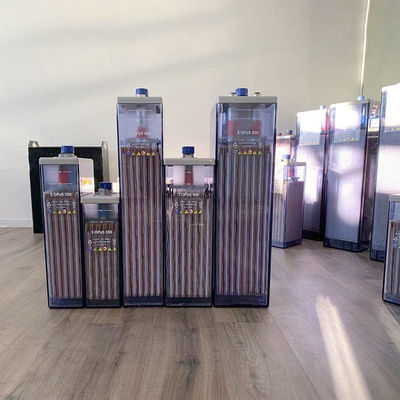

250ah 350ah OPzS Tubular Battery 600ah 420ah Long Lifetime Battery
>Main Features
1. OPzS battery series is Valve Regulated Lead Acid battery adopting immobilised GEL and Tubular Plate technology,
offering high reliability and stable performance.
2. The OPzS battery series is designed and manufactured according to DIN standards, with die-casted positive grid and patented active
material formula, they exceed the DIN standard values.
3. They offer 20 years design life in float service at 25"C and are more suitable for cyclic use under extreme operating conditions.
4. Suitable for power supply in telecommunication, photovoltaic wind energy storage and UPS applications.
| Voltage | Voltage | Capacity | Internal resistance(mm) | Terminal Type |
Dry Weight (Kg) |
Wet Weight (Kg) |
|||
| (V) | (Ah) | Length | Width | Height | Total Height | ||||
| OPzS 200 | 2 | 200 | 103 | 206 | 355 | 410 | F12 | 13 | 17.5 |
| OPzS 250 | 2 | 250 | 124 | 206 | 355 | 410 | F12 | 15 | 20.5 |
| OPzS 300 | 2 | 300 | 145 | 206 | 355 | 410 | F12 | 17.5 | 24 |
| OPzS 350 | 2 | 350 | 124 | 206 | 471 | 526 | F12 | 21 | 28 |
| OPzS 420 | 2 | 420 | 145 | 206 | 471 | 526 | F12 | 23 | 32 |
| OPzS 490 | 2 | 490 | 166 | 206 | 471 | 526 | F12 | 26.5 | 37.5 |
| OPzS 600 | 2 | 600 | 145 | 206 | 646 | 701 | F12 | 35 | 47 |
| OPzS 800 | 2 | 800 | 191 | 210 | 646 | 701 | F12 | 48 | 64 |
| OPzS 1000 | 2 | 1000 | 233 | 210 | 646 | 701 | F12 | 58 | 78 |
| OPzS 1200 | 2 | 1200 | 275 | 210 | 646 | 701 | F12 | 68 | 92 |
| OPzS 1500 | 2 | 1500 | 275 | 210 | 796 | 851 | F12 | 80 | 111 |
| OPzS 2000 | 2 | 2000 | 397 | 212 | 772 | 827 | F12 | 110 | 152 |
| OPzS 2500 | 2 | 2500 | 487 | 212 | 772 | 827 | F12 | 132 | 185 |
| OPzS 3000 | 2 | 3000 | 576 | 212 | 772 | 827 | F12 | 159 | 222 |
1. Applications
2. Telecom
3. Electric Utilities
4. Control Equipments
5. Security Systems
6. Medical Equipments
7. UPS systems
8. Railroad Utilities
9. Photovoltaic Systems
10.Renewable Energy System
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | PVC-SiO2 | Sulfuric acid | EPDR | Copper |
>Competitive Advantage
1. Sealed construction,safty and no leakage;
2. Maintenance-free,convenient for installation;
3. Broad operating temperature range;
4. High capability,high energy density;
5. Low self-discharge tate,more deep cycle times;
6. Long service life,excellent recharge and discharge time than other batteries.
