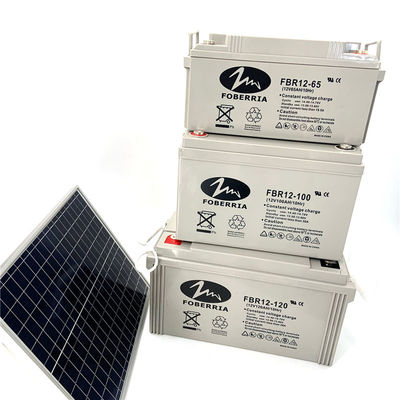

330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System

330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System
330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System

Large Image :  330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System

Product Details:
Place of Origin: CHINA
Brand Name: FOBERRIA
Certification: CE / ISO9001
Model Number: FBR12V
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Cartons with pallet
Delivery Time: 25-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60,000 per month

330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System

Description
Product Name: Solar Lead Acid Battery Model: FBR12V
Volts: 12V Capacity: 65AH-250AH
Terminal Type: F13 Battery Type: Sealed Rechargeable Battery
Color: Black,Gray,Customized Discharge: Low Self Discharge
Guarantee: 3Years Application: Solar System
High Light:

214mm Solar Lead Acid Battery

,

60.9Ah Solar Lead Acid Battery

,

330mm Deep Cycle Battery For Solar System

12V Gray Color Solar Lead Acid Deep Cycle Battery For Solar System



>Main Features



Lead acid battery are the most common form for solar battery storage currently on the market.



Battle-tested, thousands of the world's people have used large of lead-acid batteries with solar electricity to remove their need to be



connected to the traditional electricity grid.



The most common setup of lead acid batteries you'll see is usually some kind of rural household installing a bank of batteries + solar panels,



because it's cheaper than paying $30,000 to get the grid extended all the way to their house.



However, some people who have normal access to the grid still elect to go off-grid with a big bank of lead acid batteries.




>Specification

Battery Model No. FBR12V100Ah
Nominal Voltage 12V
Capacity 20HR(5.25V) 100Ah
(25ºC) 10HR(5.25V) 76Ah
  1HR(4.80V) 60.9Ah
Dimension Length 330±2mm
Width 171±2mm
Height 214±2mm
Total height 220±2mm
Approx. Weight 29.5kg±4%
Terminal type F14
Internal resistance Approx 4.5mΩ
(Fully charged,25ºC)
Capacity affected by 40ºC 102%
temperature(20HR) 25ºC 100%
  0ºC 85%
  -15ºC 65%
Self-discharge 3month Remaining Capacity:91%
(25ºC) 6month Remaining Capacity:82%
  12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
  Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage 13.5 to 13.8V
(25ºC) Temperature compensation:-18mV/ºC
Cyclic charging voltage 14.5 to 15V
(25ºC) Temperature compensation:-30mV/ºC
Max charging current 30A
Max discharging current 800A(5sec.)
Designed floating life(20ºC) 10years

>Structure and composition

Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper

330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 0
>Discharge diagram

330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 1
330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 2

>Application

1. Solar and wind energy storage system;

2. EPS and UPS battery backup;

3. Signal system , emergency lighting system , security system;

4. Telecommunication Equipment;

5. Power source for portable devices or tools.
330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 3
330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 4
330x171x214mm Gray Solar Lead Acid Battery Deep Cycle Battery For Solar System 5

>FAQ

Q1.What is your warranty time for VRLA battery ?

A1: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.

Q2. Why battery has different capacity at different hour rate?

A2: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.

For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A.

With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.

Q3. Are you a battery manufacturer, and do you produce the plate by yourself ?

A3: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q4. How to proceed with an order?

A4. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q5: How about the delivery time?

A5: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
