Product Details:
|
| Product Name: | Solar Lead Acid Battery | Model: | FBR12V |
|---|---|---|---|
| Volts: | 12V | Capacity: | 65AH-250AH |
| Terminal Type: | F13 | Battery Type: | Sealed Rechargeable Battery |
| Color: | Black,Gray,Customized | Discharge: | Low Self Discharge |
| Guarantee: | 3Years | Application: | Solar System |
| Highlight: | 12V100ah Solar Lead Acid Battery,12v90ah Solar Lead Acid Battery,12v 100ah agm lead acid gel solar battery |
||

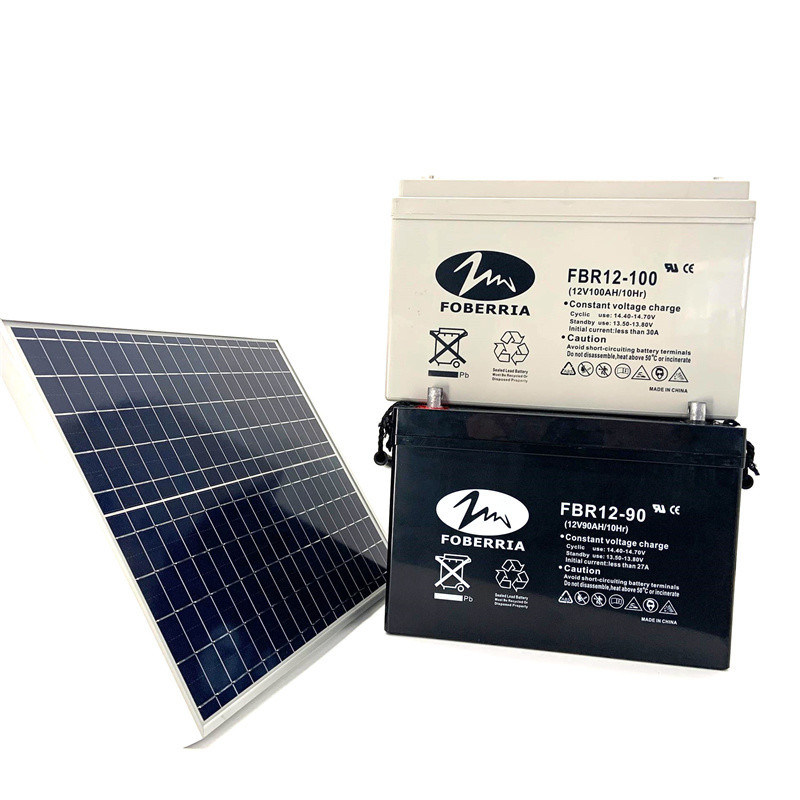

12V 90ah 100ah Stable Performance Deep Cycle Solar Lead Acid Battery For Solar
>Main Features
Lead acid battery are the most common form for solar battery storage currently on the market.
Battle-tested, thousands of the world's people have used large of lead-acid batteries with solar electricity to remove their need to be
connected to the traditional electricity grid.
The most common setup of lead acid batteries you'll see is usually some kind of rural household installing a bank of batteries + solar panels,
because it's cheaper than paying $30,000 to get the grid extended all the way to their house.
However, some people who have normal access to the grid still elect to go off-grid with a big bank of lead acid batteries.
| Battery Model No. | FBR12V100Ah | |
| Nominal Voltage | 12V | |
| Capacity | 20HR(5.25V) | 100Ah |
| (25ºC) | 10HR(5.25V) | 76Ah |
| 1HR(4.80V) | 60.9Ah | |
| Dimension | Length | 330±2mm |
| Width | 171±2mm | |
| Height | 214±2mm | |
| Total height | 220±2mm | |
| Approx. Weight | 29.5kg±4% | |
| Terminal type | F14 | |
| Internal resistance | Approx 4.5mΩ | |
| (Fully charged,25ºC) | ||
| Capacity affected by | 40ºC | 102% |
| temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge | 3month | Remaining Capacity:91% |
| (25ºC) | 6month | Remaining Capacity:82% |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage | 13.5 to 13.8V | |
| (25ºC) | Temperature compensation:-18mV/ºC | |
| Cyclic charging voltage | 14.5 to 15V | |
| (25ºC) | Temperature compensation:-30mV/ºC | |
| Max charging current | 30A | |
| Max discharging current | 800A(5sec.) | |
 Designed floating life(20ºC) |
10years | |
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
